Nitrogen Regulator

SGS REGNITRO
Nitrogen Regulator

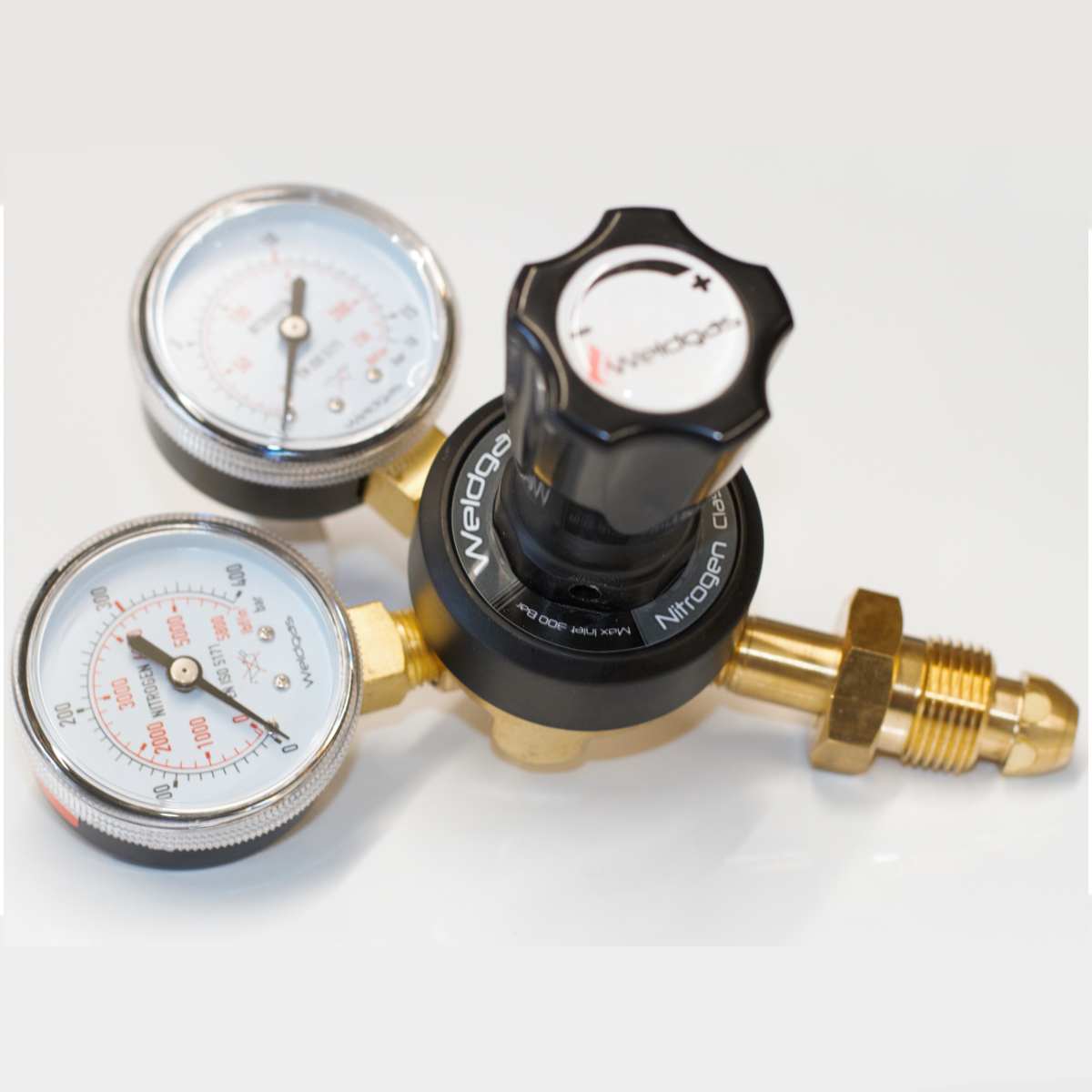

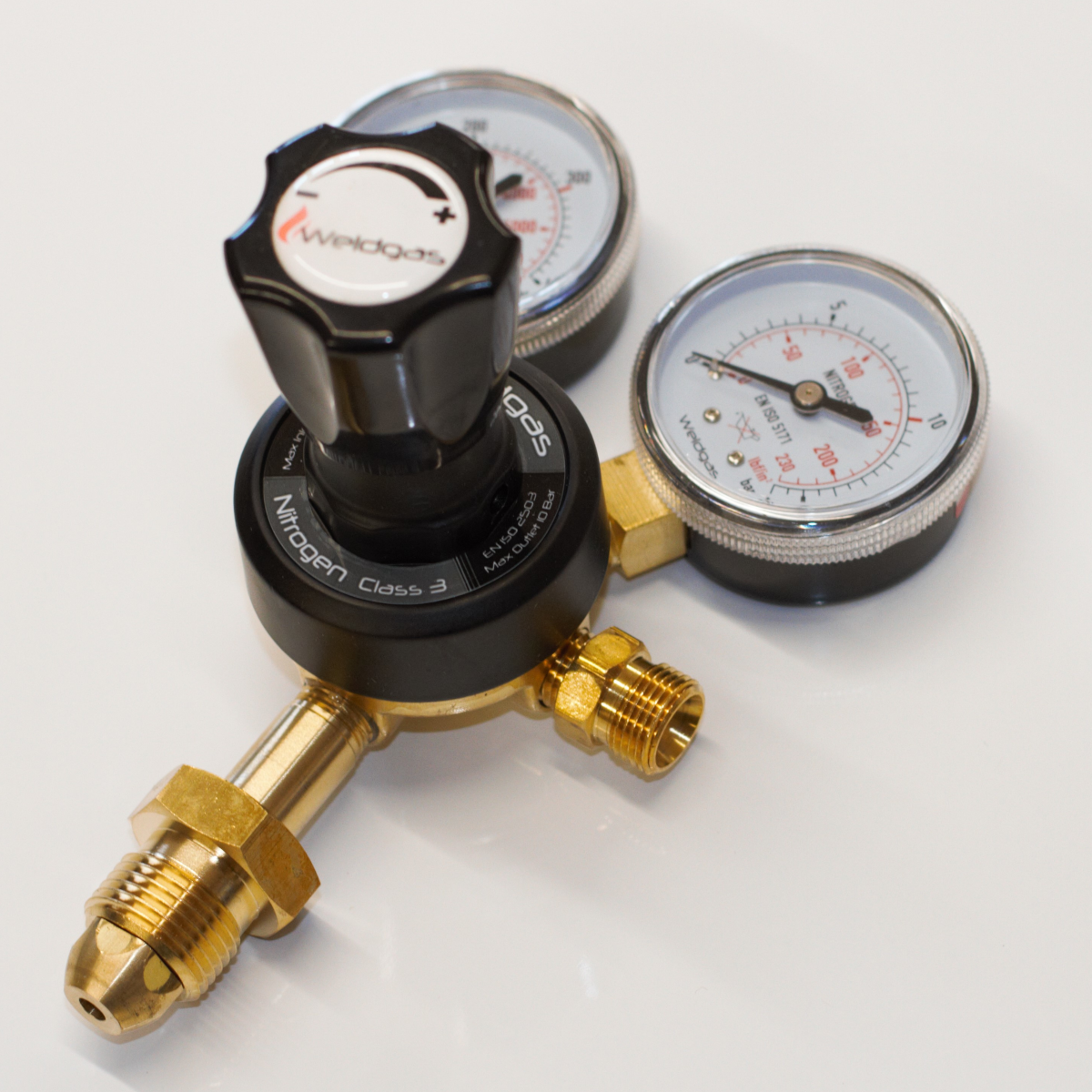

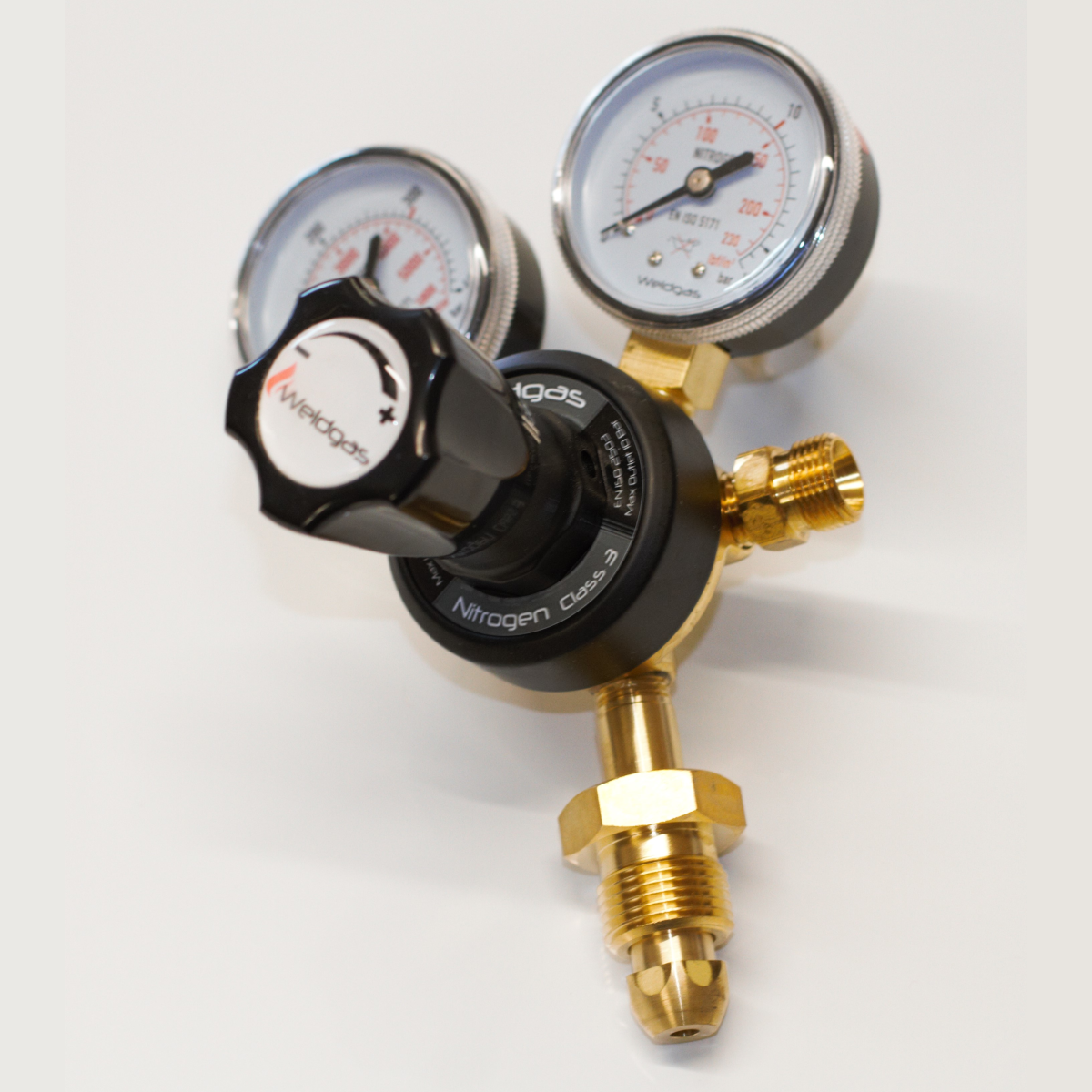

  • Twin gauge regulator, allows the user to read both cylinder and output pressure.
  • Single stage, simple adjustment to set the perfect gas pressure.
  • Suitable for OFN Nitrogen.
  • Suitable for many Nitrogen applications.

Description

SGS Gases Nitrogen Regulator is perfect for both the hobby and professional market, a cost effective regulator which allows the user accurate control over their gas usage. Capable of outputting up to 10BAR our nitrogen regulator is suitable for a range of testing, pressurising and purging applications.

Rated for a maximum input pressure of 300 BAR these regulators are a safe and leak-free way to manage the useable pressure for our range of Nitrogen and Leaktrace cylinders.

The industry standard 5/8” BSP input will fit all standard fitment open and RPV nitrogen cylinder valves. With a 3/8” BSP output these can be used with a range of accessories such as our A/C Testing kit and Tyre inflator

Compatibility

  • 10L Nitrogen
  • 20L Nitrogen
  • 30L Nitrogen
  • 50L Nitrogen
  • 10L Leak Trace

Technical

Part Number: SGS REGNITRO

Previous Part Number: SGS J1

Max Input: 300BAR

Max Output: 10BAR

Cylinder Connection: 5/8” BSP R/H

Output Connection: 3/8” BSP R/H
